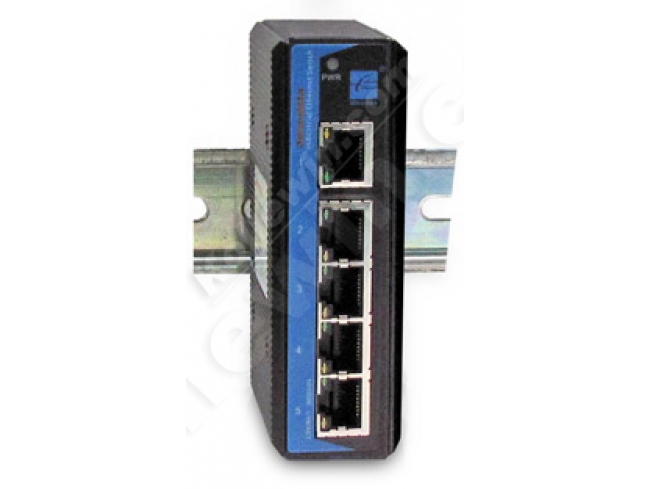

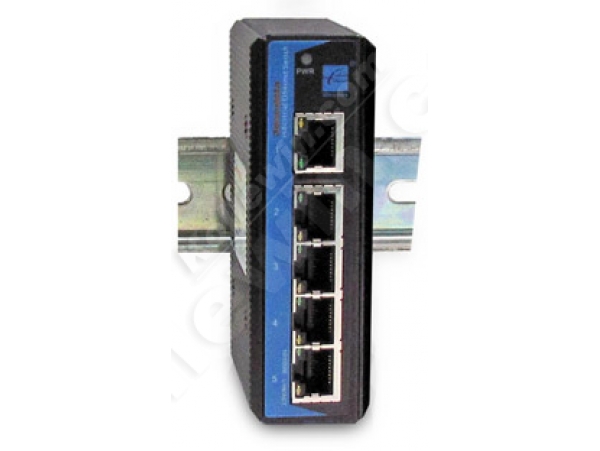

IES205 5-port Entry-level Industrial Ethernet Switch

0 reviews | Write a review

Product Code: IES205

Availability: In Stock

Price: $90.00

Qty:

Add to Wish List

Add to Compare

Description
Reviews (0)

IES205-1F(MSC)	4-port 10-BaseT/100Base-TX	1-port,multimode 100Base-FX	SC-port	DINCard rail style installation	DC12~36V
IES205-1F(MST)	4-port 10-BaseT/100Base-TX	1-port,multimode 100Base-FX	SC-port	DINCard rail style installation	DC12~36V
IES205-1F(MFC)	4-port 10-BaseT/100Base-TX	1-port,multimode 100Base-FX	SC-port	DINCard rail style installation	DC12~36V

Introduction:
The IES205 series of industrial Ethernet switches are entry-level industrial 5-port Ethernet switches that provide an economical solution for your industrial Ethernet connection, support IEEE802.3/802.3u/802.3x. Dustproof and full close structure and the IP30 case with LED indicators make the plug-and-play IES205 switches easy to use and reliable. These switches have been designed for harsh industrial environments.
IES205 Supports 5 ports 10/100Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection.
Features:
1. IEEE802.3/ 802.3u/ 802.3x
2. Support auto negotiation speed, F/H duplex mode, and auto send data control
3. Plug-and-play, auto MDI/MDI-X connection
4. Store and Forward 100M
5. Switching process type
6. Broadcast storm protection
7. Network work state LED indicator
8. 12～36VDC power input Operating temperature ranges from -40 to 75°C
9. Industry standard design, dustproof and close design IP30, rugged high-strength metal case
Specifications:

Interface
RJ45 Ports: 10/100BaseT(X) auto connection, Full /Half duplex or force work mode, and support MDI/MDI-X connection
Technology
Standard：IEEE802.3, IEEE802.3x, IEEE802.3u
Forwarding and Filtrate Rate: 148810pps
Transmit type: Store and Forward switching process type
Support 1K MAC Address
Power
Input Voltage: 12VDC~36VDC,
Overload Current Protection
Connection: 3 bit terminal block
Mechanical
Dimensions (L×W×H): 103mm×78mm×32mm
Packaging: IP 30 Protection, Metal case
Environmental
Operating Temperature: -40 to 75°C
Storage Temperature: -45 to 85 °C
Ambient Relative Humidity: 10% to 95% (non-condensing)
Approvals
EMI：FCC Part 15, CISPR (EN55022) class A
EMS: EN61000-4-2(ESD),
EN61000-4-3(RS),
EN61000-4-4(EFT),
EN61000-4-5 (Surge),
EN61000-4-6 (CS),
EN61000-4-8,
EN61000-4-11
Shock: IEC 60068-2-27
Free Fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Warranty: 5 years
Approvals: FCC,CE, RoHS approvals
