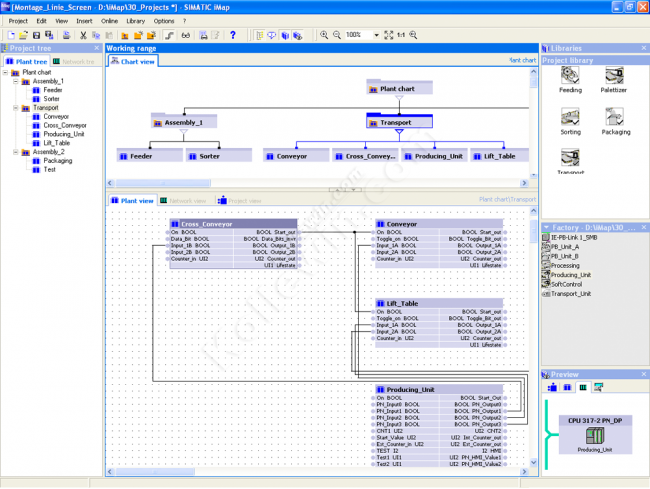

SIMATIC S7, IMAP V3.0 FLOATING LICENSE FOR 1 USER, E-SW, SW AND DOCU. ON CD, LICENSE KEY ON USB STICK, CLASS A, 5 LANGUAGES (GE/EN/FR/IT/SP), EXECUTABLE UNDER WINXPPROF, WIN 7 ULTIMATE/PROF, REFERENCE-HW:S7-300/400, ET 200X/S, PROFINET CBA |
| Standards, approvals, certificates |
| Developed in accordance with IEC 61131 |
No |
| Hardware requirements |
| Main memory, min. |
512 Mbyte |
| Required memory on hard disk, min. |
200 Mbyte |
| Processor |
Pentium processor 1 GHz or higher |
| Software requirement |
| Software required |
For use with SIMATIC devices: Step 7 V5.3 SP3 or higher |
| Operating systems |
| Software |
| Class A |
Yes |
| Runtime software |
| Target system |
| — Target system |
PROFINET CBA-enabled devices and all PROFIBUS slaves (I slaves and standard slaves) |
| — C7 |
Yes |
| — S7-300 |
Yes |
| — S7-400 |
Yes |
| — Win AC |
Yes; PROFINET Version/Option required |
| Authorization/licenses |
| ● Authorization |
Yes |
| ● Software Update Service (SUS) |
Yes |
| ● Single license (EL) |
Yes |
| ● Upgrade license (UG) |
Yes; from V2.0 to V3.0 |
| ● Unlock Copy License (UCL) |
No |
| Configuration |
| Configuration software |
| ● Current version |
V3.0 |
| ● Monitor variables |
Yes; via PROFINET services |
| ● Control variables |
Yes; via PROFINET services |
| Documentation |
| Document class |
Manuals |
| Languages |
| ● German |
Yes; Electronic, included on CD |
| ● English |
Yes; Electronic, included on CD |
| ● French |
Yes; Electronic, included on CD |
| ● Italian |
Yes; Electronic, included on CD |
| ● Spanish |
Yes; Electronic, included on CD |
| Weights |
| Weight, approx. |
250 g |
| last modified: |
14.10.2014 |
