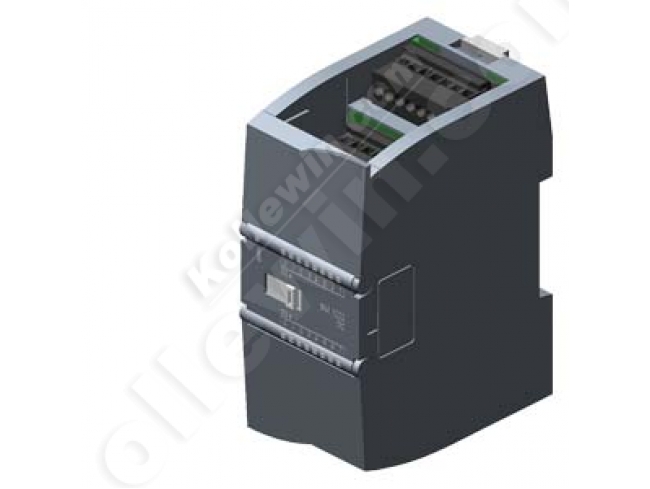

6ES7222-1BH32-0XB0 DIGITAL OUTPUT SM1222, 16 DO, 24V DC

6ES7222-1BH32-0XB0 DIGITAL OUTPUT SM1222, 16 DO, 24V DC

Product Code: 6ES7222-1BH32-0XB0

Availability: In Stock

Price: $140.60
Qty:
Add to Wish List
Add to Compare
Artikelnummer 6ES7222-1BH32-0XB0
SIMATIC S7-1200, DIGITAL OUTPUT SM 1222, 16 DO, 24V DC, TRANSISTOR 0.5A
Supply voltage
permissible range, lower limit (DC) 20.4 V
permissible range, upper limit (DC) 28.8 V
Input current
from backplane bus 5 V DC, max. 140 mA
Power losses
Power loss, typ. 2.5 W
Digital inputs
Number of digital inputs 0
Digital outputs
Number of digital outputs 16
● In groups of 1
short-circuit protection No; to be provided externally
Limitation of inductive shutdown voltage to typ. (L+) -48 V
Switching capacity of the outputs
● with resistive load, max. 0.5 A
● on lamp load, max. 5 W
Output voltage
● Rated value (DC) 24 V
● for signal "0", max. 0.1 V; with 10 kOhm load
● for signal "1", min. 20 V DC
Output current
● for signal "1" rated value 0.5 A
● for signal "0" residual current, max. 10 µA
Output delay with resistive load
● "0" to "1", max. 50 µs
● "1" to "0", max. 200 µs
Aggregate current of outputs (per group)
horizontal installation
— up to 50 °C, max. 8 A; Current per mass
Relay outputs
Switching capacity of contacts
— with inductive load, max. 0.5 A
— on lamp load, max. 5 W
— with resistive load, max. 0.5 A
Cable length
● Cable length, shielded, max. 500 m
● Cable length unshielded, max. 150 m
Interrupts/diagnostics/status information
Alarms
● Alarms Yes
● Diagnostic alarm Yes
Diagnostic messages
● Diagnostic functions Yes
● Monitoring the supply voltage Yes
Diagnostics indication LED
● For status of the outputs Yes
● for maintenance Yes
● Status indicator digital output (green) Yes
Galvanic isolation
Galvanic isolation digital outputs
● between the channels, in groups of 1
● between the channels and the backplane bus 500 V AC
Degree and class of protection
Degree of protection to EN 60529
● IP20 Yes
Standards, approvals, certificates
CE mark Yes
CSA approval Yes
UL approval Yes
cULus Yes
RCM (formerly C-TICK) Yes
FM approval Yes
Marine approval
● Marine approval Yes
Climatic and mechanical conditions for storage and transport
Climatic conditions for storage and transport
Free fall
— Drop height, max. (in packaging) 0.3 m; five times, in dispatch package
Temperature
— Permissible temperature range -40 °C to +70 °C
Air pressure acc. to IEC 60068-2-13
— Permissible air pressure 1080 to 660 hPa
Relative humidity
— Permissible range (without condensation) at 25 °C 95 %
Mechanical and climatic conditions during operation
Climatic conditions in operation
Temperature
— Permissible temperature range -20 °C to +60 °C horizontal mounting, -20 °C to 50 °C vertical mounting, 95% humidity, non-condensing
— Min. -20 °C
— max. 60 °C
— Permissible temperature change 5°C to 55°C, 3°C / minute
Connection method
required front connector Yes
Mechanics/material
Type of housing (front)
● plastic Yes

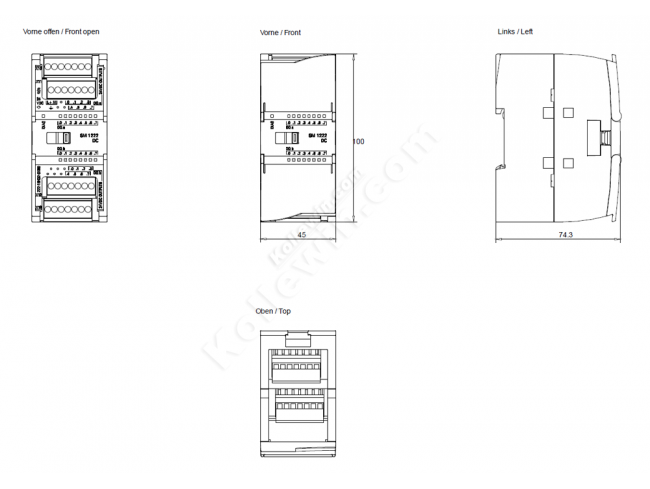

Dimensions
Width 45 mm
Height 100 mm
Depth 75 mm
Weights
Weight, approx. 220 g
last modified: 13.10.2014
