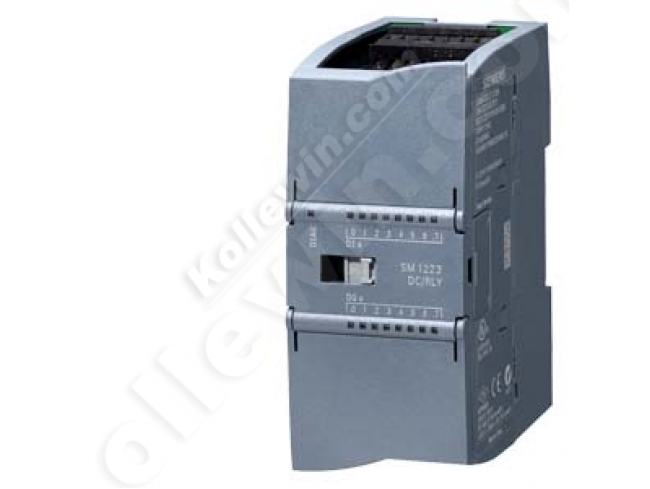

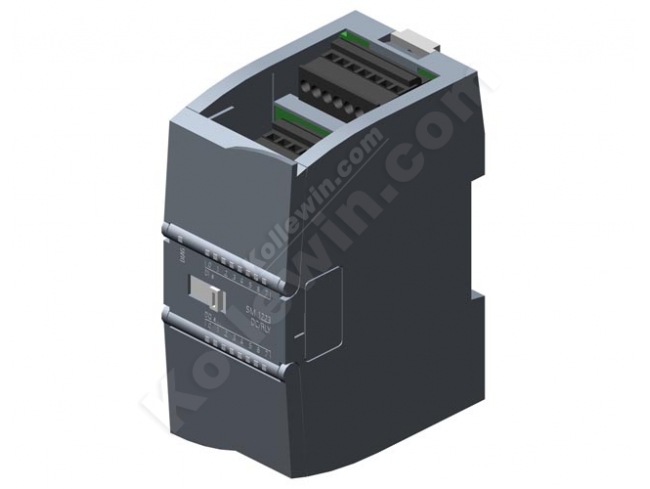

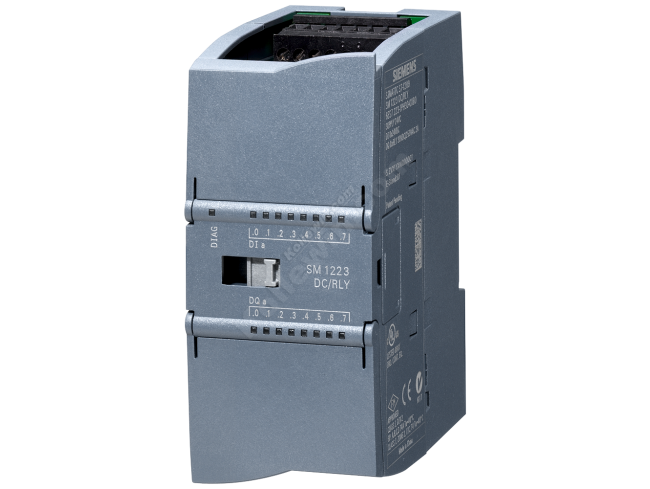

6ES7223-1PH30-0XB0 DIGITAL I/O SM 1223, 8DI/8DO

6ES7223-1PH30-0XB0 DIGITAL I/O SM 1223, 8DI/8DO

Product Code: 6ES7223-1PH30-0XB0

Availability: In Stock

Price: $92.48
Qty:
Add to Wish List
Add to Compare


Artikelnummer 6ES7223-1PH30-0XB0
SIMATIC S7-1200, DIGITAL I/O SM 1223, 8DI / 8DO, 8DI DC 24 V, SINK/SOURCE, 8DO, RELAY 2A
Supply voltage
24 V DC Yes
permissible range, lower limit (DC) 20.4 V
permissible range, upper limit (DC) 28.8 V
Input current
from backplane bus 5 V DC, max. 145 mA
Digital inputs
● from load voltage L+ (without load), max. 4 mA/input 11 mA/relay
Output voltage
Power supply to the transmitters
● present Yes
Power loss
Power loss, typ. 5.5 W
Digital inputs
Number of digital inputs 8
● in groups of 2
Input characteristic curve in accordance with IEC 61131, type 1 Yes
Number of simultaneously controllable inputs
all mounting positions
— up to 40 °C, max. 8
horizontal installation
— up to 40 °C, max. 8
— up to 50 °C, max. 8
vertical installation
— up to 40 °C, max. 8
Input voltage
● Type of input voltage DC
● Rated value, DC 24 V
● for signal "0" 5 V DC at 1 mA
● for signal "1" 15 VDC at 2.5 mA
Input current
● for signal "0", max. (permissible quiescent current) 1 mA
● for signal "1", min. 2.5 mA
● for signal "1", typ. 4 mA; Typical
Input delay (for rated value of input voltage)
for standard inputs
— parameterizable Yes; 0.2 ms, 0.4 ms, 0.8 ms, 1.6 ms, 3.2 ms, 6.4 ms and 12.8 ms, selectable in groups of four
for interrupt inputs
— parameterizable Yes
Cable length
● Cable length, shielded, max. 500 m
● Cable length unshielded, max. 300 m
Digital outputs
Number of digital outputs 8
● in groups of 2
Short-circuit protection No; to be provided externally
Switching capacity of the outputs
● with resistive load, max. 2 A
● on lamp load, max. 30 W with DC, 200 W with AC
Output voltage
● Rated value (AC) 5 V AC to 250 V AC
● Rated value (DC) 5 to 30 V AC
Output current
● for signal "1" permissible range, max. 2 A
Output delay with resistive load
● "0" to "1", max. 10 ms
● "1" to "0", max. 10 ms
Total current of the outputs (per group)
horizontal installation
— up to 50 °C, max. 10 A; Current per mass
Relay outputs
● Number of relay outputs 8
● Rated supply voltage of relay coil L+ (DC) 24 V
● Number of operating cycles, max. mechanically 10 million, at rated load voltage 100,000
Switching capacity of contacts
— with inductive load, max. 2 A
— on lamp load, max. 30 W with DC, 200 W with AC
— with resistive load, max. 2 A
Cable length
● Cable length, shielded, max. 500 m
● Cable length unshielded, max. 150 m
Interrupts/diagnostics/status information
Alarms
● Alarms Yes
● Diagnostic alarm Yes
Diagnostic messages
● Diagnostic functions Yes
Diagnostics indication LED
● for status of the inputs Yes
● for status of the outputs Yes
● for maintenance Yes
● Status indicator digital output (green) Yes
● Status indicator digital input (green) Yes
Galvanic isolation
Galvanic isolation digital inputs
● between the channels, in groups of 2
Galvanic isolation digital outputs
● between the channels Relays
● between the channels, in groups of 2
● between the channels and the backplane bus 1500 V AC for 1 minute
Permissible potential difference
between different circuits 750 V AC for 1 minute
Degree and class of protection
IP20 Yes
Standards, approvals, certificates
CE mark Yes
RCM (former C-TICK) Yes
FM approval Yes
Climatic and mechanical conditions for storage and transport
Climatic conditions for storage and transport
Free fall
— Drop height, max. (in packaging) 0.3 m; five times, in dispatch package
Temperature
— permissible temperature range -40 °C to +70 °C
Air pressure acc. to IEC 60068-2-13
— permissible air pressure 1080 to 660 hPa
Relative humidity
— permissible range (without condensation) at 25 °C 95 %
Mechanical and climatic conditions during operation
Climatic conditions in operation
Temperature
— permissible temperature range 0 °C to 55 °C horizontal installation, 0 °C to 45 °C vertical installation
— permissible temperature change 5°C to 55°C, 3°C / minute
Connection method
required front connector Yes
Mechanics/material
Type of housing (front)
● Plastic Yes

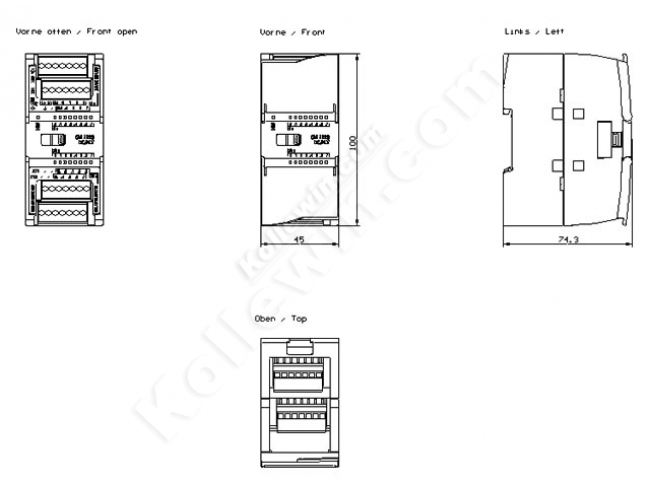

Dimensions
Width 45 mm
Height 100 mm
Depth 75 mm
Weights
Weight, approx. 230 g
last modified: 21.08.2014
