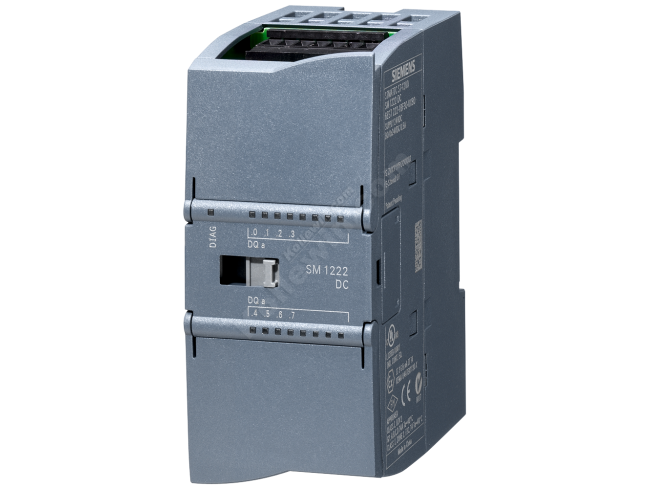

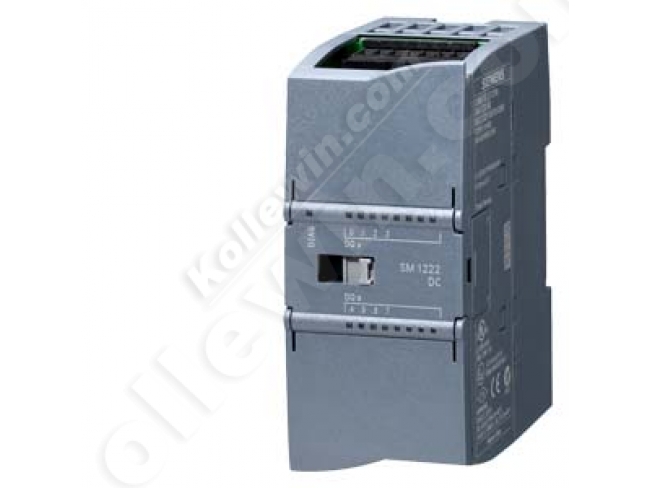

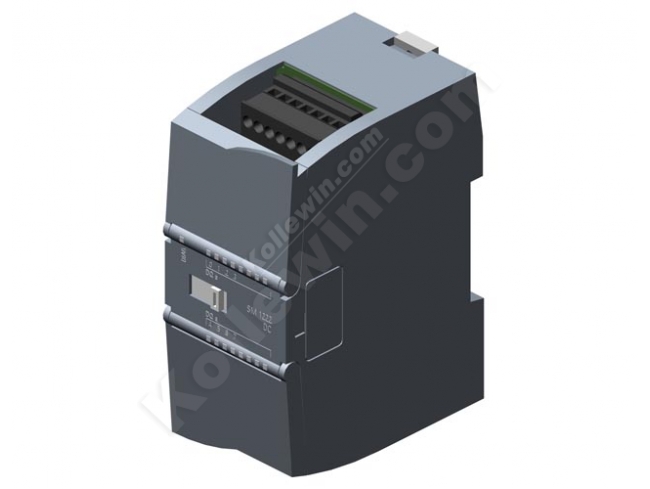

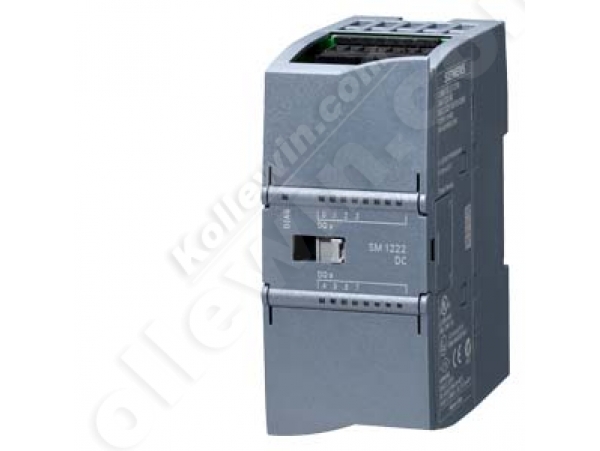

6ES7222-1BF30-0XB0 DIGITAL OUTPUT SM1222, 8 DO, 24V DC

0 reviews | Write a review

Product Code: 6ES7222-1BF30-0XB0

Availability: In Stock

Price: $58.23

Qty:

Add to Wish List

Add to Compare

Description
Reviews (0)

Artikelnummer

6ES7222-1BF30-0XB0

		SIMATIC S7-1200, DIGITAL OUTPUT SM 1222, 8 DO, 24V DC, TRANSISTOR 0.5A
Supply voltage
permissible range, lower limit (DC)		20.4 V
permissible range, upper limit (DC)		28.8 V
Input current
from backplane bus 5 V DC, max.		120 mA
Power losses
Power loss, typ.		1.5 W
Digital inputs
Number of digital inputs		0
Digital outputs
Number of digital outputs		8
● In groups of		1
short-circuit protection		No; to be provided externally
Limitation of inductive shutdown voltage to		typ. (L+) -48 V
Switching capacity of the outputs
● with resistive load, max.		0.5 A
● on lamp load, max.		5 W
Output voltage
● Rated value (DC)		24 V
● for signal "0", max.		0.1 V; with 10 kOhm load
● for signal "1", min.		20 V DC
Output current
● for signal "1" rated value		0.5 A
● for signal "0" residual current, max.		10 µA
Output delay with resistive load
● "0" to "1", max.		50 µs
● "1" to "0", max.		200 µs
Aggregate current of outputs (per group)
horizontal installation
— up to 50 °C, max.		4 A; Current per mass
Relay outputs
Switching capacity of contacts
— with inductive load, max.		0.5 A
— on lamp load, max.		5 W
— with resistive load, max.		0.5 A
Cable length
● Cable length, shielded, max.		500 m
● Cable length unshielded, max.		150 m
Interrupts/diagnostics/status information
Alarms
● Alarms		Yes
● Diagnostic alarm		Yes
Diagnostic messages
● Diagnostic functions		Yes
Diagnostics indication LED
● For status of the outputs		Yes
● for maintenance		Yes
● Status indicator digital output (green)		Yes
Galvanic isolation
Galvanic isolation digital outputs
● between the channels, in groups of		1
● between the channels and the backplane bus		500 V AC
Degree and class of protection
Degree of protection to EN 60529
● IP20		Yes
Standards, approvals, certificates
CE mark		Yes
RCM (formerly C-TICK)		Yes
FM approval		Yes
Climatic and mechanical conditions for storage and transport
Climatic conditions for storage and transport
Free fall
— Drop height, max. (in packaging)		0.3 m; five times, in dispatch package
Temperature
— Permissible temperature range		-40 °C to +70 °C
Air pressure acc. to IEC 60068-2-13
— Permissible air pressure		1080 to 660 hPa
Relative humidity
— Permissible range (without condensation) at 25 °C		95 %
Mechanical and climatic conditions during operation
Climatic conditions in operation
Temperature
— Permissible temperature range		0 °C to 55 °C horizontal installation, 0 °C to 45 °C vertical installation
— Permissible temperature change		5°C to 55°C, 3°C / minute
Connection method
required front connector		Yes
Mechanics/material
Type of housing (front)
● plastic		Yes

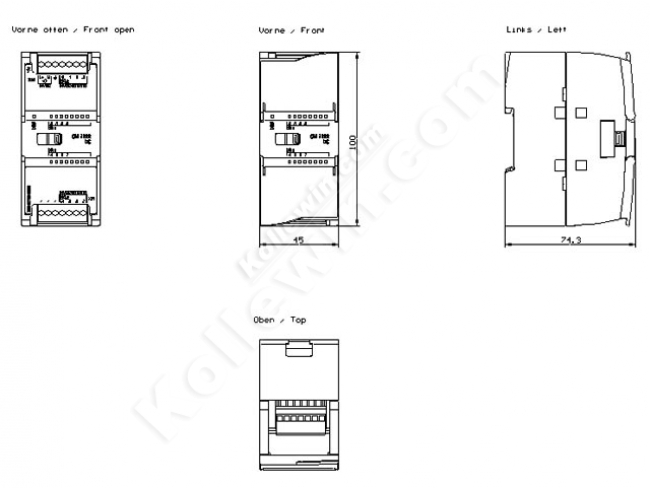

Dimensions
Width		45 mm
Height		100 mm
Depth		75 mm
Weights
Weight, approx.		180 g
last modified:		25.09.2014
