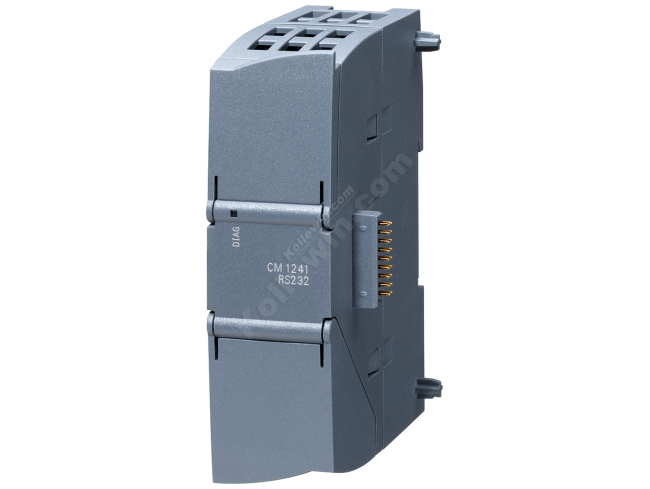

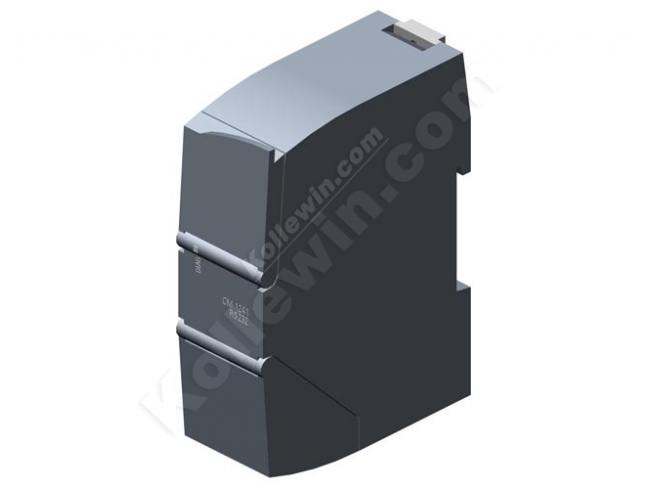

SIMATIC S7-1200, COMMUNICATION COMMUNICATION MODULE CM 1241, RS232, 9 PIN SUB D (MALE), SUPPORTS MESSAGE BASED FREEPORT |
Input current |
Current consumption, max. |
220 mA; From L5+; logic |
Power losses |
Power loss, typ. |
1.1 W |
Interfaces |
Number of interfaces |
1 |
Interface physics, RS 232C (V.24) |
Yes |
Point-to-point |
● Cable length, max. |
10 m |
Integrated protocol driver |
— ASCII |
Yes |
Climatic and mechanical conditions for storage and transport |
Climatic conditions for storage and transport |
Free fall |
— Drop height, max. (in packaging) |
0.3 m; five times, in dispatch package |
Temperature |
— Permissible temperature range |
-40 °C to +70 °C |
Air pressure acc. to IEC 60068-2-13 |
— Permissible air pressure |
1080 to 660 hPa |
Relative humidity |
— Permissible range (without condensation) at 25 °C |
95 % |
Mechanical and climatic conditions during operation |
Climatic conditions in operation |
Temperature |
— Permissible temperature range |
0 °C to 55 °C horizontal installation, 0 °C to 45 °C vertical installation |
— Permissible temperature change |
5°C to 55°C, 3°C / minute |
Air pressure acc. to IEC 60068-2-13 |
— Permissible air pressure |
1080 to 795 hPa |
Software |
Runtime software |
Target system |
— S7-1200 |
Yes |

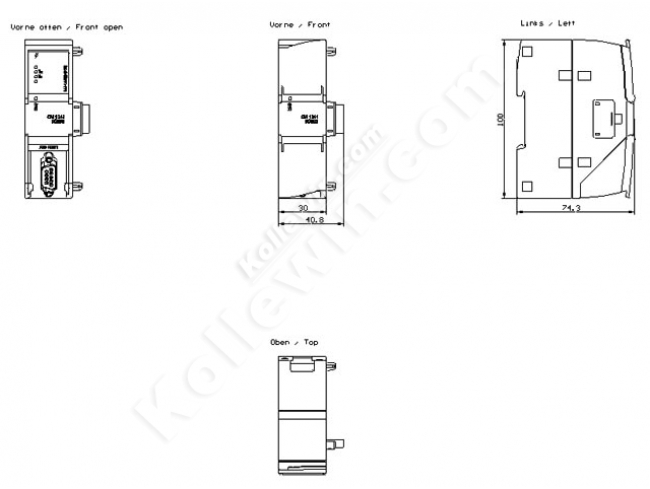

Dimensions |
Width |
30 mm |
Height |
100 mm |
Depth |
75 mm |
Weights |
Weight, approx. |
150 g |
last modified: |
25.09.2014 |
