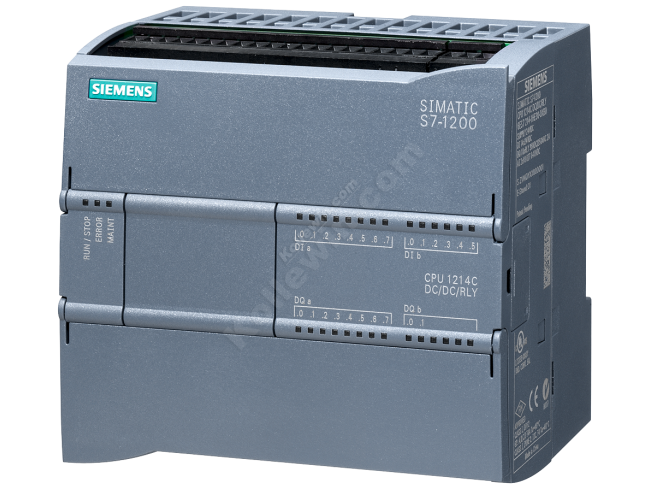

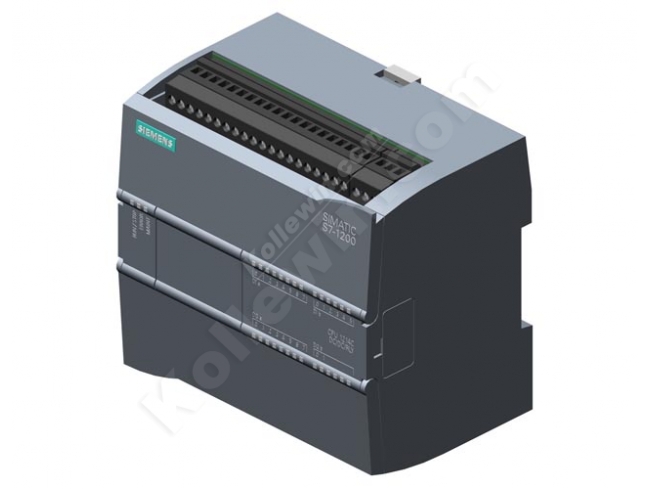

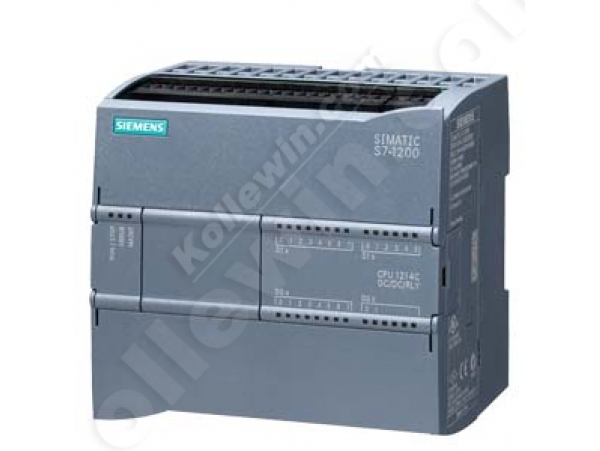

6ES7214-1HE30-0XB0 CPU 1214C, DC/DC/RELAY, 14DI/10DO/2AI

6ES7214-1HE30-0XB0 CPU 1214C, DC/DC/RELAY, 14DI/10DO/2AI

Product Code: 6ES7214-1HE30-0XB0

Availability: In Stock

Price: $202.08
Qty:
Add to Wish List
Add to Compare


Artikelnummer 6ES7214-1HE30-0XB0
Display
with display No
Supply voltage
24 V DC Yes
permissible range, lower limit (DC) 20.4 V
permissible range, upper limit (DC) 28.8 V
Load voltage L+
● Rated value (DC) 24 V
● permissible range, lower limit (DC) 5 V
● permissible range, upper limit (DC) 250 V
Input current
Current consumption (rated value) 500 mA
Current consumption, max. 1.2 A
Inrush current, max. 12 A
Output current
Current output to backplane bus (DC 5 V), max. 1 600 mA
Power losses
Power loss, typ. 12 W
Memory
Usable memory for user data 50 kbyte
Work memory
● Integrated 50 kbyte
● expandable No
Load memory
● Integrated 2 Mbyte
● Plug-in (SIMATIC Memory Card), max. 24 Mbyte
Backup
● present Yes
● without battery Yes
CPU processing times
for bit operations, typ. 0.1 µs
for word operations, typ. 12 µs
for floating point arithmetic, typ. 18 µs
Data areas and their retentivity
retentive data area in total (incl. times, counters, flags), max. 2 048 byte
Flag
● Number, max. 8 kbyte
Address area
I/O address area
● Inputs 1 024 byte
● Outputs 1 024 byte
Process image
● Inputs, adjustable 1 kbyte
● Outputs, adjustable 1 kbyte
Time of day
Clock
● Hardware clock (real-time clock) Yes
● Backup time 240 h
Digital inputs
Number of digital inputs 14
● of which, inputs usable for technological functions 6
integrated channels (DI) 14
m/p-reading Yes
Input voltage
● Rated value, DC 24 V
Input current
● for signal "1", typ. 1 mA
Input delay (for rated value of input voltage)
for standard inputs
— at "0" to "1", min. 0.2 ms
— at "0" to "1", max. 12.8 ms
for interrupt inputs
— Parameterizable Yes
Cable length
● Cable length, shielded, max. 500 m
● Cable length unshielded, max. 300 m
Digital outputs
Number of digital outputs 10
integrated channels (DO) 10
short-circuit protection No
Switching capacity of the outputs
● with resistive load, max. 2 A
Output delay with resistive load
● "0" to "1", max. 10 ms
● "1" to "0", max. 10 ms
Switching frequency
● of the pulse outputs, with resistive load, max. 1 Hz
Relay outputs
● Max. number of relay outputs, integrated 10
● Number of relay outputs 10
Cable length
● Cable length, shielded, max. 500 m
● Cable length unshielded, max. 150 m
Analog inputs
Number of analog inputs 2
Integrated channels (AI) 2
Input ranges
● Voltage Yes
Input ranges (rated values), voltages
● 0 to +10 V Yes
Cable length
● Cable length, shielded, max. 100 m
Analog outputs
Cable length
● Cable length, shielded, max. 100 m
Analog value creation
Integration and conversion time/resolution per channel
● Resolution with overrange (bit including sign), max. 10 bit
● Integration time, parameterizable Yes
● Conversion time (per channel) 625 µs
Encoder
Connectable encoders
● 2-wire sensor Yes
1st interface
Isolated Yes
Automatic detection of transmission speed Yes
Autonegotiation Yes
Autocrossing Yes
Functionality
● PROFINET IO Controller Yes
Communication functions
S7 communication
● supported Yes
● as server Yes
Open IE communication
● TCP/IP Yes
● ISO-on-TCP (RFC1006) Yes
Web server
● supported Yes
● User-defined websites Yes
Number of connections
● overall 15
Test commissioning functions
Status/control
● Status/control variable Yes
Forcing
● Forcing Yes
Integrated Functions
Number of counters 6
Counter frequency (counter) max. 100 kHz
Frequency meter Yes
controlled positioning Yes
PID controller Yes
Number of alarm inputs 4
Galvanic isolation
Galvanic isolation digital inputs
● Galvanic isolation digital inputs No
● between the channels, in groups of 1
Galvanic isolation digital outputs
● between the channels No
● between the channels, in groups of 1
EMC
Interference immunity against discharge of static electricity
● Interference immunity against discharge of static electricity acc. to IEC 61000-4-2 Yes
— Test voltage at air discharge 8 kV
— Test voltage at contact discharge 6 kV
Interference immunity to cable-borne interference
● Interference immunity on supply lines acc. to IEC 61000-4-4 Yes
● Interference immunity on signal lines acc. to IEC 61000-4-4 Yes
Surge immunity
● on the supply lines acc. to IEC 61000-4-5 Yes
Immunity against conducted interference induced by high-frequency fields
● Interference immunity against high-frequency radiation acc. to IEC 61000-4-6 Yes
Emission of radio interference acc. to EN 55 011
● Limit class A, for use in industrial areas Yes
● Limit class B, for use in residential areas Yes
Degree and class of protection
Degree of protection to EN 60529
● IP20 Yes
Standards, approvals, certificates
CE mark Yes
cULus Yes
RCM (formerly C-TICK) Yes
FM approval Yes
Ambient conditions
Operating temperature
● Min. 0 °C
● max. 55 °C
● horizontal installation, min. 0 °C
● horizontal installation, max. 55 °C
● vertical installation, min. 0 °C
● vertical installation, max. 45 °C
Storage/transport temperature
● Min. -40 °C
● max. 70 °C
Air pressure
● Operation, min. 795 hPa
● Operation, max. 1 080 hPa
● Storage/transport, min. 660 hPa
● Storage/transport, max. 1 080 hPa
Relative humidity
● Operation, max. 95 %
Vibrations
● Operation, checked according to IEC 60068-2-6 Yes
Shock test
● checked according to IEC 60068-2-27 Yes
Climatic and mechanical conditions for storage and transport
Climatic conditions for storage and transport
Free fall
— Drop height, max. (in packaging) 0.3 m
Configuration
programming
Programming language
— LAD Yes
— FBD Yes
— SCL Yes
Cycle time monitoring
● can be set Yes

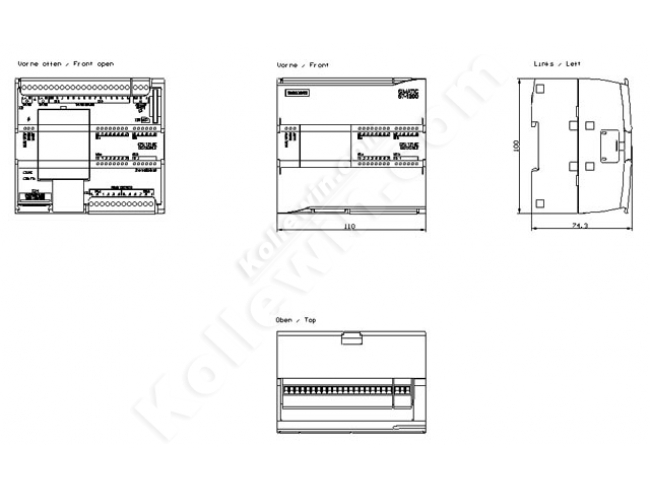

Dimensions
Width 110 mm
Height 100 mm
Depth 75 mm
Weights
Weight, approx. 435 g
last modified: 16.09.2014
