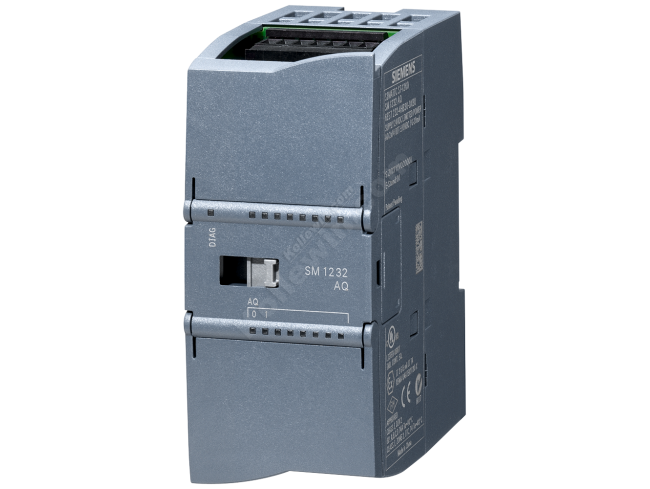

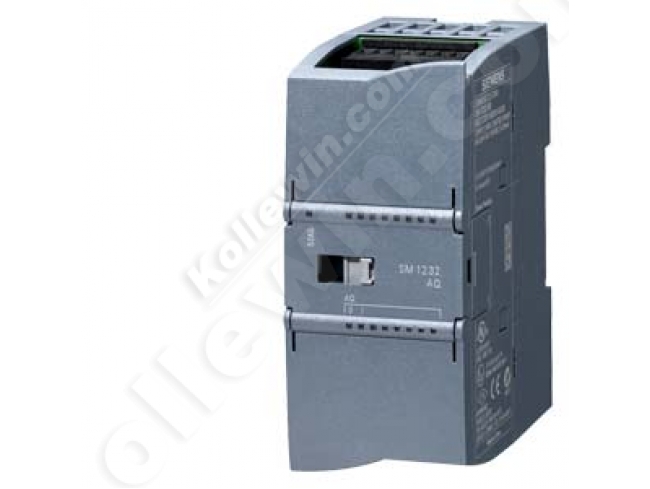

6ES7232-4HB30-0XB0 ANALOG OUTPUT SM 1232, 2AO

0 reviews | Write a review

Product Code: 6ES7232-4HB30-0XB0

Availability: In Stock

Price: $126.73

Qty:

Add to Wish List

Add to Compare

Description
Reviews (0)

Artikelnummer

6ES7232-4HB30-0XB0

		SIMATIC S7-1200, ANALOG OUTPUT, SM 1232, 2 AO, +/-10V, 14 BIT RESOLUTION, OR 0-20 MA, 13 BIT RESOLUTION,
Supply voltage
24 V DC		Yes
Input current
Current consumption, typ.		45 mA
from backplane bus 5 V DC, typ.		80 mA
Power loss
Power loss, typ.		1.5 W
Analog inputs
Number of analog inputs		0
Thermocouple (TC)
Temperature compensation
— parameterizable		No
Analog outputs
Number of analog outputs		2; Current or voltage
Output ranges, voltage
● -10 to +10 V		Yes
Output ranges, current
● 0 to 20 mA		Yes
Load impedance (in rated range of output)
● with voltage outputs, min.		1 000 Ω
● with current outputs, max.		600 Ω
Analog value generation
Measurement principle		Differential
Integration and conversion time/resolution per channel
● Resolution (incl. overrange)		Voltage: 14 bits; Current : 13 bits
● Integration time, parameterizable		Yes
● Interference voltage suppression for interference frequency f1 in Hz		40 dB, DC to 60 V for interference frequency 50 / 60 Hz
Errors/accuracies
Temperature error (relative to output range), (+/-)		25 °C ±0.3% to 55 °C ±0.6% total measurement range
Basic error limit (operational limit at 25 °C)
● Voltage, relative to output area, (+/-)		0.3 %
● Current, relative to output area, (+/-)		0.3 %
Interference voltage suppression for f = n x (f1 +/- 1 %), f1 = interference frequency
● Common mode voltage, max.		12 V
Interrupts/diagnostics/status information
Alarms
● Alarms		Yes
● Diagnostic alarm		Yes
Diagnostic messages
● Diagnostic functions		Yes
● Monitoring the supply voltage		Yes
● Wire-break		Yes
● Short-circuit		Yes
Diagnostics indication LED
● for status of the outputs		Yes
● for maintenance		Yes
Degree and class of protection
IP20		Yes
Standards, approvals, certificates
CE mark		Yes
RCM (former C-TICK)		Yes
FM approval		Yes
Climatic and mechanical conditions for storage and transport
Climatic conditions for storage and transport
Free fall
— Drop height, max. (in packaging)		0.3 m; five times, in dispatch package
Temperature
— permissible temperature range		-40 °C to +70 °C
Air pressure acc. to IEC 60068-2-13
— permissible air pressure		1080 to 660 hPa
Relative humidity
— permissible range (without condensation) at 25 °C		95 %
Mechanical and climatic conditions during operation
Climatic conditions in operation
Temperature
— permissible temperature range		0 °C to 55 °C horizontal installation, 0 °C to 45 °C vertical installation
Air pressure acc. to IEC 60068-2-13
— permissible air pressure		1080 to 795 hPa
Pollutant concentrations
— SO2 at RH < 60% without condensation		S02: < 0.5 ppm; H2S: < 0.1 ppm; RH < 60% condensation-free
Connection method
required front connector		Yes
Mechanics/material
Type of housing (front)
● Plastic		Yes

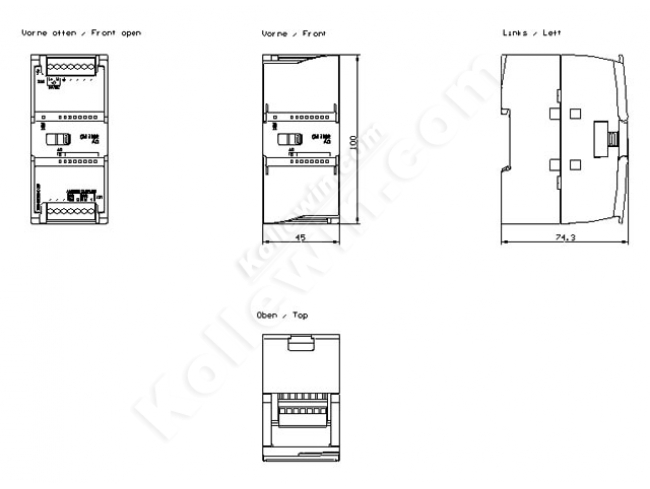

Dimensions
Width		45 mm
Height		100 mm
Depth		75 mm
Weights
Weight, approx.		180 g
last modified:		31.07.2014
