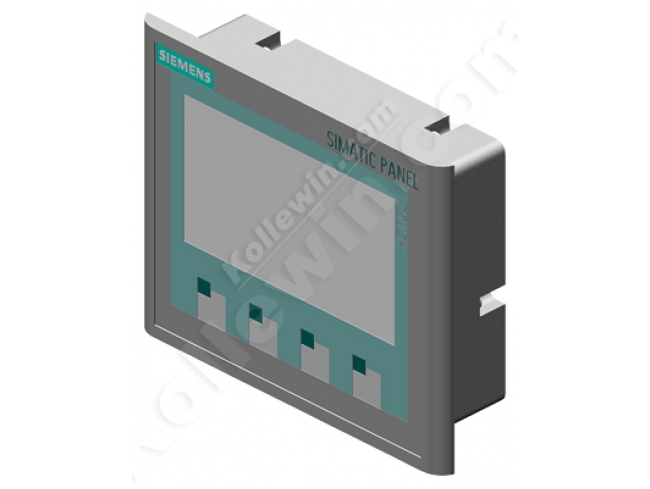

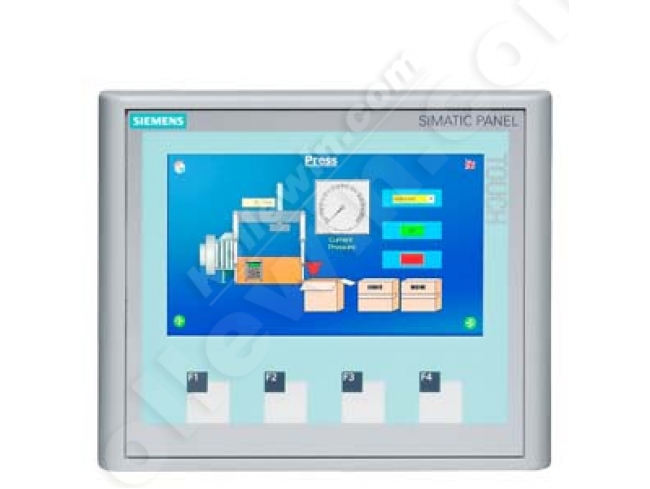

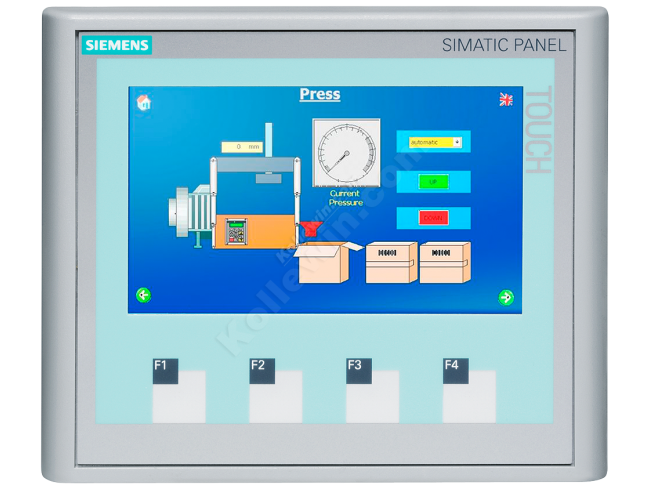

6AV6647-0AK11-3AX0 SIMATIC HMI KTP400 BASIC COLOR PN

6AV6647-0AK11-3AX0 SIMATIC HMI KTP400 BASIC COLOR PN

Product Code: 6AV6647-0AK11-3AX0

Availability: In Stock

Price: $209.09
Qty:
Add to Wish List
Add to Compare
Tags: 6AV6647-0AK11-3AX0
Artikelnummer 6AV6647-0AK11-3AX0
SIMATIC HMI KTP400 BASIC COLOR PN, BASIC PANEL, KEY AND TOUCH OPERATION, 4" WIDESCREEN-TFT-DISPLAY, 256 COLORS, PROFINET INTERFACE, CONFIGURATION FROM WINCC BASIC V11 SP2/ STEP 7 BASIC V11 SP2, CONTAINS OPEN SOURCE SW WHICH IS PROVIDED FREE OF CHARGE FOR DETAILS SEE CD
Product type designation
Display
Design of display TFT
Screen diagonal 4.3 in
Display width 95 mm
Display height 53.8 mm
Number of colors 256
Resolution (pixels)
● Horizontal image resolution 480
● Vertical image resolution 272
Backlighting
● MTBF backlighting (at 25 °C) 50 000 h
● Dimmable backlight No
Control elements
Keyboard
● Number of function keys 4
● Keys with LED No
● System keys No
● Numeric/alphabetical input
— Numeric keyboard Yes; Onscreen keyboard
— Alphanumeric keyboard Yes; Onscreen keyboard
Touch operation
● Design as touch screen Yes
Installation type/mounting
Mounting in portrait format possible Yes
Mounting in landscape format possible Yes
Supply voltage
Type of supply voltage DC
Rated value (DC) 24 V
permissible range, lower limit (DC) 19.2 V
permissible range, upper limit (DC) 28.8 V
Input current
Current consumption (rated value) 0.1 A
Inrush current A²s 0.5 A²·s
Power
Power consumption, typ. 2 W
Memory
Flash Yes
RAM Yes
Usable memory for user data 1 Mbyte
Type of output
Acoustics
● Buzzer Yes
● Speaker No
Time of day
Clock
● Hardware clock (real-time clock) No
● Software clock Yes
● Battery-backed No
● Synchronizable Yes
Interfaces
Number of RS 485 interfaces 0
Number of USB interfaces 0
Number of SD card slots 0
Number of parallel interfaces 0
Number of 20 mA interfaces (TTY) 0
Number of RS 232 interfaces 0
Number of RS 422 interfaces 0
Number of other interfaces 0
With software interfaces No
Industrial Ethernet
● Number of industrial Ethernet interfaces 1
● Industrial Ethernet status LED 2
Protocols
PROFINET Yes
PROFINET IO No
IRT supported No
PROFIBUS No
MPI No
Protocols (Ethernet)
● TCP/IP Yes
● DHCP Yes
● SNMP Yes
● DCP Yes
● LLDP Yes
WEB characteristics
● HTTP No
● HTML No
Further protocols
● CAN No
● MODBUS Yes; Modicon (MODBUS TCP/IP)
● Supports protocol for EtherNet/IP Yes
Interrupts/diagnostics/status information
Diagnostic messages
● Diagnostic information readable No
EMC
Emission of radio interference acc. to EN 55 011
● Limit class A, for use in industrial areas Yes
● Limit class B, for use in residential areas No
Degree and class of protection
IP (at the front) IP65
Enclosure Type 4 at the front Yes
Enclosure type 4x at the front Yes
IP (rear) IP20
Standards, approvals, certificates
CE mark Yes
KC approval Yes
cULus Yes
RCM (formerly C-TICK) Yes
Marine approval
● Germanischer Lloyd (GL) Yes
● American Bureau of Shipping (ABS) Yes
● Bureau Veritas (BV) Yes
● Det Norske Veritas (DNV) Yes
● Lloyds Register of Shipping (LRS) Yes
● Nippon Kaiji Kyokai (Class NK) Yes
● Polski Rejestr Statkow (PRS) Yes
Use in hazardous areas
● ATEX Zone 2 No
● ATEX Zone 22 No
● cULus Class I Zone 1 No
● cULus Class I Zone 2, Division 2 No
● FM Class I Division 2 No
Ambient conditions
Mounting position vertical
maximum permissible angle of inclination without external ventilation 35°
Operating temperature
● Operation (vertical installation)
— in vertical mounting position, minimum 0 °C
— in vertical mounting position, maximum 50 °C
● Operation (max. tilt angle)
— at maximum tilt angle, minimum 0 °C
— at maximum tilt angle, maximum 40 °C
● Operation (vertical installation, portrait format)
— in vertical mounting position, minimum 0 °C
— in vertical mounting position, maximum 40 °C
● Operation (max. tilt angle, portrait format)
— at maximum tilt angle, minimum 0 °C
— at maximum tilt angle, maximum 35 °C
Storage/transport temperature
● Min. -20 °C
● max. 60 °C
Relative humidity
● Operation, max. 90 %
Operating systems
proprietary Yes
Executable with configuration operating system
● other No
Configuration
Message indicator Yes
With alarm logging system (incl. buffer and acknowledgment) Yes
Process value display (output) Yes
Process value default (input) possible Yes
Recipe administration Yes
Configuration software
● STEP 7 Basic (TIA Portal) Yes; via integrated WinCC Basic (TIA Portal)
● STEP 7 Professional (TIA Portal) Yes; via integrated WinCC Basic (TIA Portal)
● WinCC flexible Compact No
● WinCC flexible Standard No
● WinCC flexible Advanced No
● WinCC Basic (TIA Portal) Yes
● WinCC Comfort (TIA Portal) Yes
● WinCC Advanced (TIA Portal) Yes
● WinCC Professional (TIA Portal) Yes
Languages
Online languages
● Number of online/runtime languages 5
Languages
● Languages per project 32
● Languages
— D Yes
— GB Yes
— F Yes
— I Yes
— E Yes
— Chinese traditional Yes
— Chinese simplified Yes
— DK Yes
— FIN Yes
— GR Yes
— J Yes
— KP / ROK Yes
— NL Yes
— N Yes
— PL Yes
— P Yes
— RUS Yes
— S Yes
— CZ Yes
— SK Yes
— TR Yes
— H Yes
Functionality under WinCC (TIA Portal)
Libraries Yes
Task planner
● time-controlled No
● task-controlled Yes
Help system Yes
● Number of characters per info text 320
Message system
● Number of alarm classes 32
● Number of bit messages 200
● Number of analog messages 15
● System messages HMI Yes
● Number of characters per message 80
● Number of process values per message 8
● Message indicator Yes
● Message buffer
— Number of entries 256
— Circulating buffer Yes
— retentive Yes
— maintenance-free Yes
Recipe administration
● Number of recipes 5
● Data records per recipe 20
● Entries per data record 20
● Size of internal recipe memory 40 kbyte
● Recipe memory expandable No
Variables
● Number of variables per device 500
● Number of variables per screen 30
● Limit values Yes
● Multiplexing Yes
● Structs No
● Arrays Yes
Images
● Number of configurable images 50
● Permanent window/default Yes; No permanent window can be configured
● Global image Yes
● Start screen configurable Yes
● Image selection by PLC Yes
● Image number in the PLC Yes
Image objects
● Number of objects per image 30
● Text fields Yes
● I/O fields Yes
● Graphic I/O fields (graphics list) Yes
● Symbolic I/O fields (text list) Yes
● Date/time fields Yes
● Switches Yes
● Buttons Yes
● Graphic view Yes
● Icons Yes; Predefined screen objects
● Geometric objects Yes
Complex image objects
● Number of complex objects per screen 5
● Alarm view Yes
● Trend view Yes
● User view Yes
● Status/control No
● Sm@rtClient view No
● Recipe view Yes
● f(x) trend view No
● System diagnostics view No
● Media Player No
● Bar graphs Yes
● Sliders No
● Pointer instruments No
● Analog/digital clock No
Lists
● Number of text lists per project 150
● Number of entries per text list 30
● Number of graphics lists per project 100
● Number of entries per graphics list 30
Archiving
● Number of archives per device 0
Security
● Number of user groups 50
● Number of user rights 32
● Number of users 50
● Password export/import No
● SIMATIC Logon No
Character sets
● Keyboard
— US American (English) Yes
● Character sets
— Tahoma Yes
— Arial No
— Courier New No
— WinCC flexible Standard Yes
— Ideographic languages Yes
● Font size freely scalable No
● Additional character sets can be loaded No
Transfer (upload/download)
● MPI/PROFIBUS DP No
● USB No
● Ethernet Yes
● using external storage medium No
Process coupling
● S7-1200 Yes
● S7-1500 Yes
● S7-200 Yes
● S7-300/400 Yes
● LOGO! Yes
● Win AC No
● SINUMERIK No
● SIMOTION No
● Allen Bradley (EtherNet/IP) Yes
● Allen Bradley (DF1) No
● Mitsubishi (MC TCP/IP) Yes
● Mitsubishi (FX) No
● OMRON (FINS TCP) No
● OMRON (LINK/Multilink) No
● Modicon (Modbus TCP/IP) Yes
● Modicon (Modbus) No
Service tools/configuration aids
● Clean screen Yes
● Touch calibration Yes
● Backup/restore Yes
● Backup/Restore automatically No
● Simulation Yes
● Device switchover Yes
● Delta transfer No
I/O / Options
I/O devices
● Printer No
● MultiMediaCard No
● SD card No
● USB memory No
Mechanics/material
Type of housing (front)
● plastic Yes
● aluminum No
● Stainless steel No

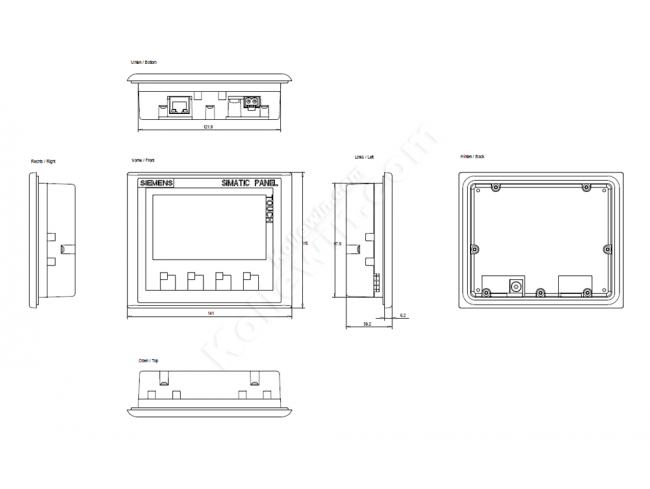

Dimensions
Width of the housing front 140 mm
Height of housing front 116 mm
Mounting cutout/device depth (W x H x T)
● Mounting cutout, width 123 mm
● Mounting cutout, height 99 mm
Device depth 33 mm
Weights
Without packaging 0.34 kg
With packaging 0.45 kg
last modified: 14.10.2014
