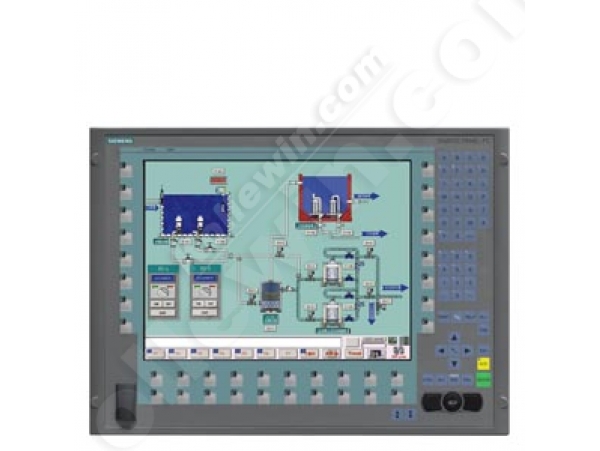

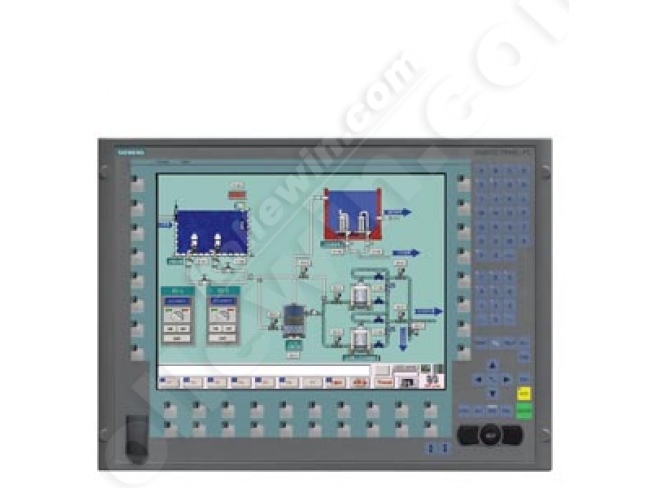

6AV7873-.....-...0 SIMATIC PANEL PC 677B, 15

6AV7873-.....-...0 SIMATIC PANEL PC 677B, 15" KEY

Product Code: 6AV7873-.....-...0

Availability: In Stock

Price: $2,609.85
Qty:
Add to Wish List
Add to Compare
Artikelnummer 6AV7873-.....-...0
General information
Warranty 24 months liability for defects
Operator control and monitoring
Accessory components Slide-in keyboard labels, direct key module, remote kit
Display
Screen diagonal 15 in
Size 15" TFT
Resolution (pixels)
● Resolution (WxH in pixel) 1024 x 768
General features

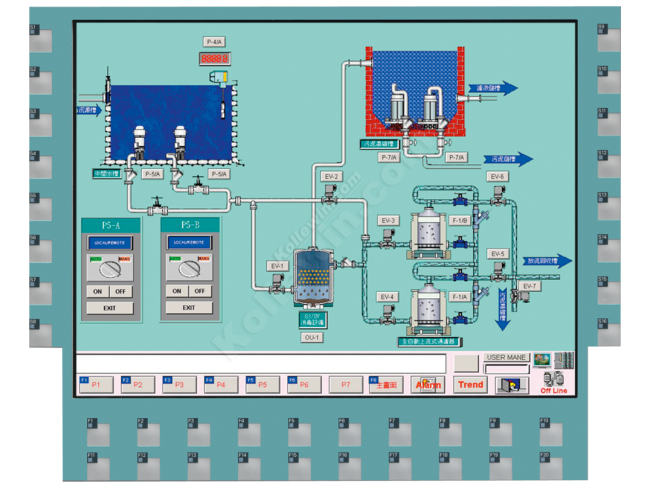

● Front panel 15" TFT Key
● Expansion components Uninterruptible power supply (USP), SIMATIC NET communication modules
Backlighting
● MTBF backlighting (at 25 °C) 50 000 h
Control elements
Function keys 36 with LEDs
Mouse, at front Yes
Touch operation
● Design as touch screen No
Installation type/mounting
central design Yes
Distributed design Yes; by means of remote kit
Supply voltage
Type of supply voltage AC, optional DC
Line frequency
● Line frequency 50 / 60 Hz
Power losses
Power loss in full configuration 140W max. (15W included per slot)
Processor
Processor type Intel Core 2 Duo technology; Intel Celeron M 440, 1.86 GHz, 533 MHz FSB, 1 MB SLC; Core 2 Duo T5500, 1.66 GHz, 667 MHz FSB, 2 MB SLC; Core 2 Duo T7400, 2.16 GHz, 667 MHz FSB, 4 MB SLC
Drives
Diskette drive optional: via external USB floppy disk drive
Optical drives Optional: DVD±R±RW combi drive; on rear, can be operated from side
Hard disk 3.5" SATA hard disk ≥ 160 GB, optional ≥ 250 GB, optional: 2 x 2.5" SATA hard disk module (≥ 80 GB), RAID 1 controller onboard; all drives are vibration-damped
Memory
Main memory 512 MB to 4 GB
● Capacity of main memory, maximum 4 096 Mbyte; At least 3.2 GB can be used
Data areas and their retentivity
retentive data area in total (incl. times, counters, flags), max. 2 MB battery-backed only DC power supply WinAC RTX 2005 SP1 or higher
Interfaces
PROFIBUS/MPI 1
USB port 1x at front, 4x at rear, USB 2.0 (500 mA)
Free slots 2x PCI or 1x PCI & 1x PCIe (x4) (slots with card retainer), 1x slot for CompactFlash Card
Number of PCI slots 2
Number of compact flash slots 1
Connection for keyboard/mouse USB / USB
serial interface COM1: 1 x V.24 (RS232)
Video interfaces
● Graphics interface DVI-I usable for additional display unit (VGA via adapter); color depth 32 bits, 8 to 128 MB Shared Memory
Industrial Ethernet
● Industrial Ethernet interface Onboard, 2 x 10/100/1000 Mbit/s, RJ45, no plug-in card necessary
— 100 Mbps Yes
— 1000 Mbps Yes
Monitoring functions
Temperature Yes
Watchdog Yes
Status LEDs Yes
Degree and class of protection
IP (at the front) 65 or 66k (15" INOX)
Standards, approvals, certificates
Approval CE, cULus (508)
CE mark Yes
EMC CE, EN 55011, EN 61000-6-4, EN 61000-6-2
EN 61000-6-2 Yes
Marine approval
● Germanischer Lloyd (GL) No
● American Bureau of Shipping (ABS) No
● Bureau Veritas (BV) No
● Det Norske Veritas (DNV) No
● Lloyds Register of Shipping (LRS) No
● Polski Rejestr Statkow (PRS) No
Ambient conditions
maximum permissible installation angle +/- 20°
Operating temperature
● Ambient temperature in operation 12", 15": +5 °C to +50 °C in maximum configuration 17", 19": +5 °C to +45 °C in maximum configuration
— during operating phase, minimum 5 °C
— during operating phase, maximum 50 °C
Relative humidity
● Relative humidity Tested to DIN IEC 60068-2-3, DIN IEC 60068-2-30, DIN IEC 60068-2-56: 5% to 80% at 25 °C (no condensation)
Vibrations
● Vibration load in operation Tested to DIN IEC 60068-2-6: 10 Hz to 58 Hz: 0.075 mm, 58 Hz to 200 Hz: 9.8 m/s² (1 g)
Shock testing
● Shock loading in operation Tested to DIN IEC 60068-2-29: 50 m/s² (5g), 30 ms, 100 shocks
Operating systems
Operating system Windows 2000 Prof. (Multi Language), Windows XP Prof. (Multi Language), Windows Vista Ultimate 32 bit, Windows Server 2003 Standard 32 bit (incl. 5 clients), Windows XP embedded (English) on CF card, opt. without operating system
Additional info on operating system Multi Language: Windows 2000, XP: DE, EN, IT, FR, SP, KOR, CHN (traditional), CHN (simplified), JPN Windows Vista and Server 2003: DE, EN, IT, FR, SP; further languages downloadable from Microsoft
Pre-installed operating system Yes
● Windows XP Prof. Yes
without operating system Yes
Software
SIMATIC Software Optionally in package with SIMATIC WinCC or WinCC flexible
Dimensions
Mounting cutout/device depth (W x H x T) 450 mm x 321 mm / 145 mm (incl. optical drive)
additional mounting depth (optical drive) 21 mm
Weights
Panel PC in central design, approx. 16 kg
last modified: 13.10.2014
