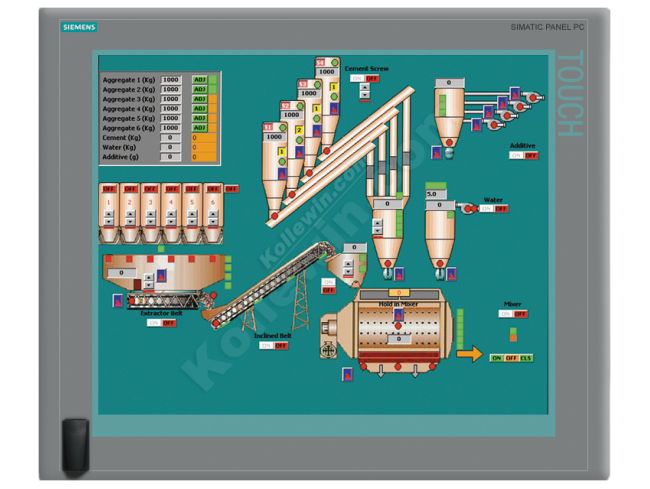

6AV7835-0BA10-1CC0 SIMATIC PANEL PC 577B, 19" TOUCH

Product Code: 6AV7835-0BA10-1CC0

Availability: In Stock

Price: $2,390.65

Qty:

Artikelnummer

6AV7835-0BA10-1CC0

		SIMATIC PANEL PC 577B 19" TOUCH; 1280X1024; WINDOWS XP PROF MUI; AC 110/230V NAMUR; CEL M 440, 1,86 GHZ, 1MB L2; 1 GB RAM DDR2; 160GB SATA HDD 3,5"; DVD+/-R+/-RW; INTERFACES: 2X PCI, 2X ETHERNET 1GBIT/S, 4X USB 2.0 500MA, 1X FRONT-USB 2.0 500MA, 1X SERIAL (COM1) POWER CORD EU AND US INCLUDED
Operator control and monitoring
Accessory components		Touch cover foils, fixing elements for screw mounting at the front
Display
Screen diagonal		19 in
Size		19" TFT Touch
Resolution (pixels)
● Resolution (WxH in pixel)		1280 x 1024
General features
● Front panel		19" TFT touch display
● Expansion components		Uninterruptible power supply (UPS), SIMATIC NET communication modules, DiagMonitor, ImagePartition Creator
Backlighting
● MTBF backlighting (at 25 °C)		50 000 h
Control elements
Function keys		No
Touch operation
● Design as touch screen		Yes
Installation type/mounting
central design		Yes
Distributed design		No
Power losses
Power loss in full configuration		163 W max. (17.5 W included per slot)
Dimensions
Mounting cutout/device depth (W x H x T)		450x380 / 151 (incl. optical drive)
additional mounting depth (optical drive)		21 mm
Weights
Panel PC in central design, approx.		17 kg
last modified:		14.10.2014
