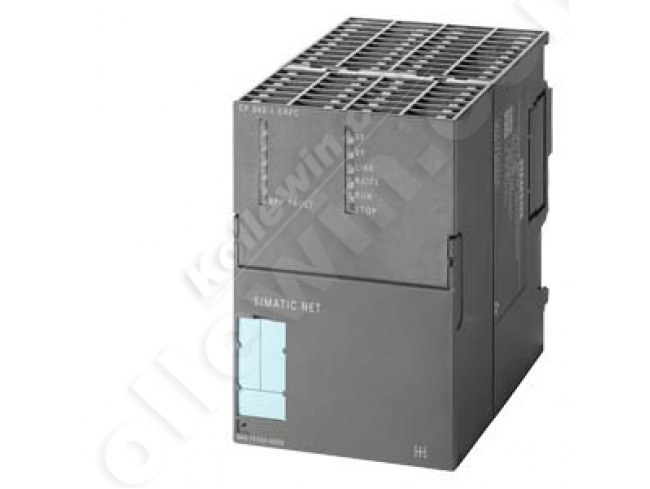

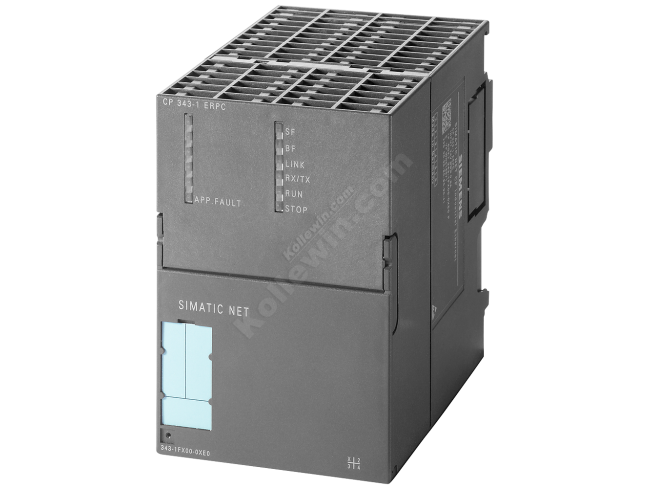

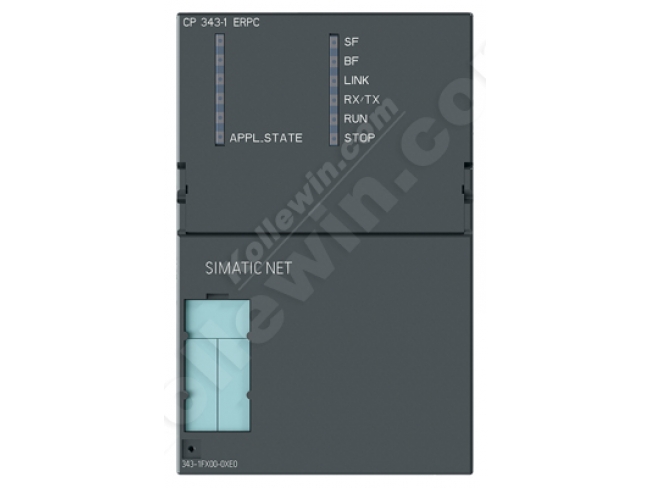

Artikelnummer 6GK7343-1FX00-0XE0
Product type designation CP 343-1 ERPC
COMMUNICATIONSPROCESSOR CP343-1 ERPC FOR CONNECTING SIMATIC S7-300 CPU TO INDUSTRIAL ETHERNET AND TO VARIOUS DATABASES. FUNCTIONS: TCP/UDP, S7-COMM, OPEN COMM. WITH AND WITHOUT RFC 1006, MULTICAST, WEBSERVER, TIME VIA SIMATIC PROCESS OR NTP, ACCESS PROTECTION VIA IP-ACCESS LIST, SNMP, DHCP, C-PLUG, GIGABIT-SS 1X RJ45 (10/100/1000 MBIT);
Transmission rate
Transfer rate
● at the 1st interface 10 ... 1000 Mbit/s
Interfaces
Number of interfaces / acc. to Industrial Ethernet 1
Number of electrical connections
● at the 1st interface / acc. to Industrial Ethernet 1
● for power supply 1
Design of the electrical connection
● at the 1st interface / acc. to Industrial Ethernet RJ45 port
● for power supply 2-pole plugable terminal block
design of the removable storage / C-PLUG Yes
Supply voltage, current consumption, power loss
Type of voltage / of the supply voltage DC
Supply voltage / 1 / from backplane bus 5 V
Supply voltage / external 24 V
Relative positive tolerance / for DC / at 24 V 20 %
Relative negative tolerance / for DC / at 24 V 15 %
Consumed current
● from backplane bus / for DC / at 5 V / typical 0.3 A
● from external supply voltage / for DC / at 24 V / typical 0.16 A
● from external supply voltage / for DC / at 24 V / maximum 0.6 A
Active power loss 14.7 W
Permitted ambient conditions
Ambient temperature
● for vertical installation / during operation 0 ... 40 °C
● for horizontally arranged busbars / during operation 0 ... 60 °C
● during storage -40 ... +70 °C
● during transport -40 ... +70 °C
Relative humidity / at 25 °C / without condensation / during operation / maximum 95 %
Protection class IP IP20

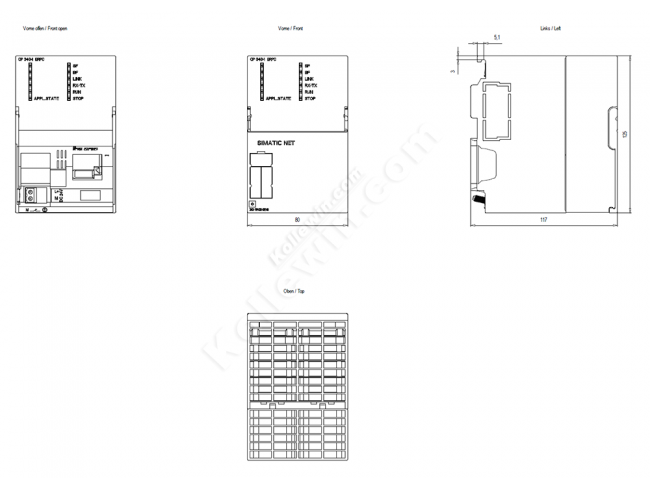

Design, dimensions and weight
Module format Compact module S7-300 double width
Width 80 mm
Height 125 mm
Depth 120 mm
Net weight 0.8 kg
Mounting type
● S7-300 rail mounting Yes
Performance data
Performance data / open communication
Number of possible connections / for open communication / by means of SEND/RECEIVE blocks
● maximum 8
Amount of data
● as user data per ISO on TCP connection / for open communication / by means of SEND/RECEIVE blocks / maximum 8 Kibyte
● as user data per TCP connection / for open communication / by means of SEND/RECEIVE blocks / maximum 8 Kibyte
● as user data per UDP connection / for open IE communication / by means of SEND/RECEIVE blocks / maximum 2 Kibyte
Number of Multicast stations 8
Performance data / S7 communication
Number of possible connections / for S7 communication
● maximum 8
● Note also 2 PG/OP connections and 1 diagnostics connection
Performance data / multi-protocol mode
Number of active connections / with multi-protocol mode 32
Performance data / IT functions
Number of possible connections
● as server / by means of HTTP / maximum 4
Number of possible write cycles / of the flash memory cells 100000
Performance data / ERPC functions
Number of possible connections / for communication with ERP or MES stations / maximum 8
Number of possible logical triggers / per CP / maximum 8
Number of configurable ERPC symbols for database access
● per CPU / maximum 2000
● per logical trigger / maximum 255
Amount of data / as user data and header information per logical trigger 8 Kibyte
Performance data / telecontrol
Protocol / is supported
● TCP/IP Yes
Product functions / management, configuration
Product function / MIB support Yes
Protocol / is supported
● SNMP v1 Yes
● DCP Yes
● LLDP Yes
Configuration software
● required STEP 7 V5.4 SP5 + HSP or higher
Identification & maintenance function
● I&M0 - device-specific information Yes
● I&M1 – higher-level designation/location designation Yes
Product functions / Diagnosis
Product function / Web-based diagnostics Yes
Product functions / switch
Product feature / Switch No
Product functions / Redundancy
Product function
● Ring redundancy No
Product functions / Security
Product function
● password protection for Web applications No
● ACL - IP-based Yes
● ACL - IP-based for PLC/routing No
● switch-off of non-required services Yes
● Blocking of communication via physical ports Yes
● log file for unauthorized access No
Product functions / Time
Product function / SICLOCK support Yes
Product function / pass on time synchronization Yes
Protocol / is supported / NTP Yes
Further Information / Internet Links
Internet-Link
● to website: Selector SIMATIC NET SELECTION TOOL http://www.siemens.com/snst
● to website: Industrial communication http://www.siemens.com/simatic-net
● to website: Information and Download Center http://www.siemens.com/automation/net/catalog
● to website: Image database http://automation.siemens.com/bilddb
● to website: CAx Download Manager http://www.siemens.com/cax
● to website: Industry Online Support http://support.automation.siemens.com
last modified: 03.11.2014
