Artikelnummer 6GK7243-5DX30-0XE0

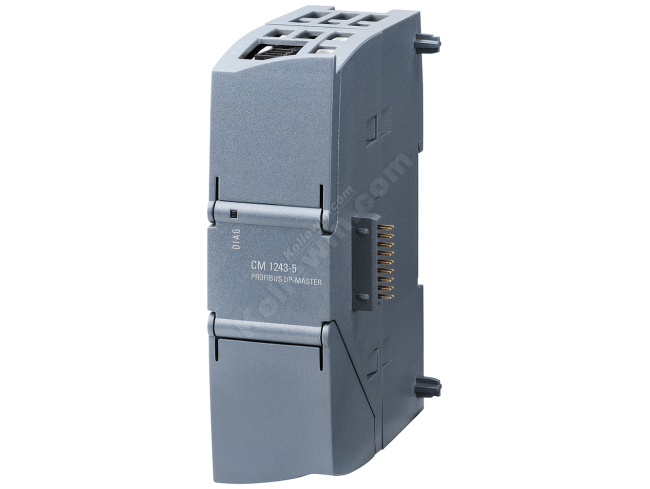

Product type designation CM 1243-5
COMMUNICATION MODULE CM 1243-5 FOR CONNECTION OF SIMATIC S7-1200 TO PROFIBUS AS DP MASTER MODULE; PG/OP COMMUNICATION; S7-COMMUNICATION
Transmission rate
Transfer rate
● at the 1st interface / acc. to PROFIBUS 9.6 kbit/s ... 12 Mbit/s
Interfaces
Number of interfaces / acc. to Industrial Ethernet 0
Number of electrical connections
● at the 1st interface / acc. to PROFIBUS 1
● for power supply 1
Design of the electrical connection
● at the 1st interface / acc. to PROFIBUS 9-pin Sub-D socket (RS485)
● for power supply 3-pole terminal block
Supply voltage, current consumption, power loss
Type of voltage / of the supply voltage DC
Supply voltage / external 24 V
Relative positive tolerance / for DC / at 24 V 20 %
Relative negative tolerance / for DC / at 24 V 20 %
Consumed current
● from external supply voltage / for DC / at 24 V / typical 0.1 A
Active power loss 2.4 W
Permitted ambient conditions
Ambient temperature
● for vertical installation / during operation 0 ... 45 °C
● for horizontally arranged busbars / during operation 0 ... 55 °C
● during storage -40 ... +70 °C
● during transport -40 ... +70 °C
Relative humidity / at 25 °C / without condensation / during operation / maximum 95 %
Protection class IP IP20
Design, dimensions and weight
Module format Compact module S7-1200 single width
Width 30 mm
Height 100 mm
Depth 75 mm
Net weight 0.134 kg
Mounting type
● 35 mm DIN rail mounting Yes
● S7-300 rail mounting No
● wall mounting Yes
Product properties, functions, components / general
Number of units
● per CPU / maximum 1
Performance data
Performance data / PROFIBUS DP
Service / as DP master
● DPV1 Yes
Number of DP slaves / on DP master / usable 16
Amount of data
● of the address area of the inputs / as DP master / total 512 byte
● of the address area of the outputs / as DP master / total 512 byte
● of the address area of the inputs / per DP slave 244 byte
● of the address area of the outputs / per DP slave 244 byte
● of the address area of the diagnostic data / per DP slave 240 byte
Service / as DP slave
● DPV0 No
● DPV1 No
Performance data / S7 communication
Number of possible connections / for S7 communication
● maximum 8
● with PG connections / maximum 1
● with PG/OP connections / maximum 3
● Note max. 4 connections to other S7 stations
Performance data / multi-protocol mode
Number of active connections / with multi-protocol mode
● without DP / maximum 8
● with DP / maximum 8
Performance data / telecontrol
Protocol / is supported
● TCP/IP No
Product functions / management, configuration
Configuration software
● required STEP 7 Basic/Professional V11 (TIA Portal) or higher
Further Information / Internet Links
Internet-Link
● to website: Selector SIMATIC NET SELECTION TOOL http://www.siemens.com/snst
● to website: Industrial communication http://www.siemens.com/simatic-net
● to website: Information and Download Center http://www.siemens.com/automation/net/catalog
● to website: Image database http://automation.siemens.com/bilddb
● to website: CAx Download Manager http://www.siemens.com/cax
● to website: Industry Online Support http://support.automation.siemens.com
last modified: 03.11.2014
