Artikelnummer 6GK5744-1AA30-2AB0
Product type designation SCALANCE W744-1
Product description

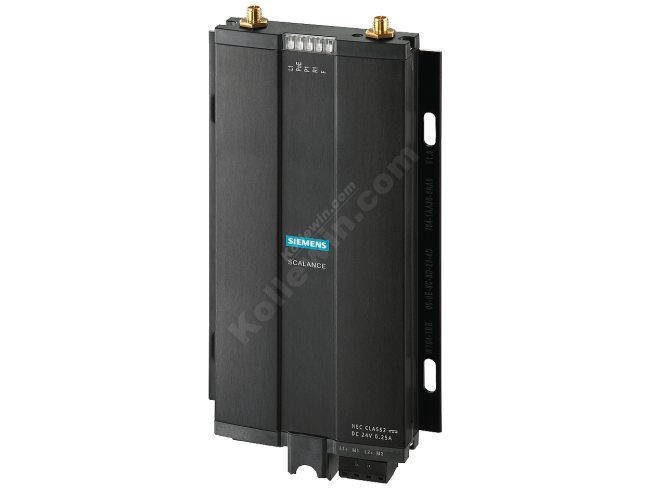

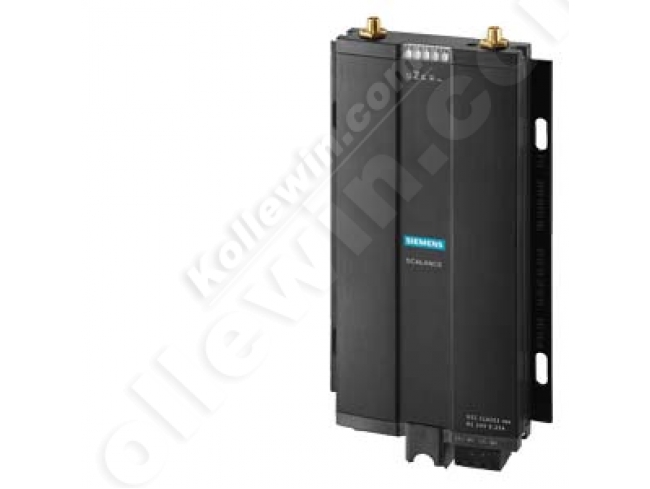

IWLAN ETHERNET CLIENT MODULE SCALANCE W744-1, ONLY FOR USE IN USA, 1 RADIO INTERFACE, IEEE 802.11B/G/A/H, INDUSTRIAL WIRELESS LAN (IWLAN), 2.4/5GHZ, UP TO 54 MBIT/S, 24VDC WPA2/802.11I/11E, NOTE NATIONAL APPROVALS, POE, IP30 (-20-+60 DGR C) 2XEXT. ANTENNA CONNECTIONS SCOPE OF SUPPLY: MANUALS ON CD ROM GERMAN/ENGLISH, 24VDC TERMINAL BLOCK
Transmission rate
Transfer rate
● with WLAN / maximum 54 Mbit/s
● for Industrial Ethernet 10 Mbit/s, 100 Mbit/s
● Note Due to the simultaneous use of several radio channels, a transmission rate of 108 Mbit/s is possible (turbo mode)
Interfaces
Number of electrical connections
● for network components or terminal equipment 1
● for power supply 1
● for redundant voltage supply 1
Design of the electrical connection
● for network components or terminal equipment RJ45 socket
● for power supply 4-pole screw terminal, PoE
design of the removable storage
● C-PLUG Yes
● KEY-PLUG No
Interfaces / wireless
Number of radio cards / permanently installed 1
Number of electrical connections / for external antenna(s) 2
Design of the electrical connection / for external antenna(s) R-SMA (socket)
Product property / external antenna can be mounted directly on device Yes
Supply voltage, current consumption, power loss
Type of voltage / of the supply voltage DC
Supply voltage / 1
● from terminal block 24 V
Supply voltage / 2
● from terminal block 48 V
Supply voltage
● from Power-over-Ethernet acc. to IEEE802.3at for type 1 and IEEE802.3af 48 V
Consumed current
● for DC / at 24 V / typical 0.23 A
● for DC / at 48 V / typical 0.12 A
● with Power-over-Ethernet according to IEEE802.3at for type 1 and IEEE802.3af / typical 0.12 A
Active power loss
● for DC / at 24 V / typical 6 W
● for DC / at 48 V / typical 6 W
● with Power-over-Ethernet according to IEEE802.3at for type 1 and IEEE802.3af / typical 6 W
Permitted ambient conditions
Ambient temperature
● during operation -20 ... +60 °C
● during storage -40 ... +70 °C
● during transport -40 ... +70 °C
Relative humidity / at 25 °C / without condensation / during operation / maximum 90 %
Ambient condition / for operation When used under hazardous conditions (Zone 2), the SCALANCE W784-x/xRR or W74x-1 product must be installed in an enclosure. To comply with EN 50021, this enclosure must meet the requirements of at least IP 54 in compliance with EN 60529.
Protection class IP IP30
Design, dimensions and weight

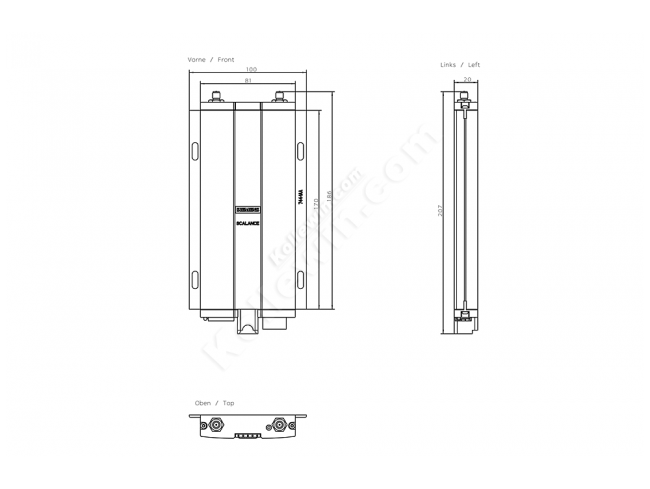

Width / of the enclosure / without antenna 100 mm
Height / of the enclosure / without antenna 205 mm
Depth / of the enclosure / without antenna 20 mm
Net weight 0.29 kg
Mounting type For mounting on 35 mm DIN and S7-300 mounting rail, an additional adapter plate is required
● S7-1500 rail mounting No
● wall mounting Yes
Wireless frequencies
Radio frequency
● for WLAN in 2.4 GHz frequency band 2.41 ... 2.48 GHz
● for WLAN in 5 GHz frequency band 4.9 ... 5.8 GHz
Product properties, functions, components / general
Product function / Access Point Mode No
Product function / Client Mode Yes
Product function
● Dual Client No
● iHOP No
● iPCF client No
● iPCF-MC client No
Number of iPCF-capable radio modules 0
Product functions / management, configuration
Number of manageable IP addresses / in client 1
Product function
● CLI Yes
● web-based management Yes
● MIB support Yes
● TRAPs via email Yes
● Configuration with STEP 7 No
● configuration with STEP 7 in the TIA Portal No
● operation with IWLAN controller No
● operation with Enterasys WLAN controller No
● iQoS No
● forced roaming with IWLAN No
● WDS No
Protocol / is supported
● Address Resolution Protocol (ARP) Yes
● ICMP Yes
● Telnet Yes
● HTTP Yes
● HTTPS Yes
● TFTP Yes
● DCP Yes
● LLDP No
Identification & maintenance function
● I&M0 - device-specific information Yes
● I&M1 – higher-level designation/location designation Yes
Product functions / Diagnosis
Product function
● PROFINET IO diagnosis No
● Link Check No
● connection monitoring IP-Alive No
● localization via Aeroscout No
● SysLog Yes
Protocol / is supported
● SNMP v1 Yes
● SNMP v2 Yes
● SNMP v3 Yes
Product functions / VLAN
Product function
● function VLAN with IWLAN No
Product functions / DHCP
Product function
● DHCP client Yes
● in Client Mode / DHCP server via LAN No
Product functions / Security
Product function
● ACL - MAC-based No
● Management security, ACL-IP based No
● IEEE 802.1x (radius) Yes
● NAT/NAPT No
● access protection according to IEEE802.11i Yes
● WPA/WPA2 Yes
● TKIP/AES Yes
Protocol / is supported
● SSH Yes
Product functions / Time
Protocol / is supported
● SNTP Yes
● SIMATIC Time No
Standards, specifications, approvals
Standard
● for FM FM 3611: Class I, Division 2, Groups A,B,C,D, T4 / Class 1, Zone 2, Group IIC, T4
● for hazardous zone EN 60079-15:2005, EN 60079-0:2006, II 3 G Ex nA II T4 KEMA 07 ATEX 0145X (only approved in combination with an enclosure with degree of protection of at least IP 54)
● for safety / from CSA and UL UL 60950-1 CSA C22.2 No. 60950-1
● for hazardous zone / from CSA and UL ISA 12.12.01-2000, CSA C22.2 No. 213-M1987, CL. 1, Div. 2, GP. A,B,C,D, T4 / CL. 1, Zone 2, GP IIC, T4 / CL. 1, Zone 2, AEx nC IIC, T4 (only approved in combination with an enclosure with degree of protection of at least IP 54)
Certificate of suitability
● EC declaration of conformity Yes
● CE marking Yes
● C-Tick Yes
● E1 approval Yes
● Railway application in accordance with EN 50155 Yes
● NEMA4X No
● Power-over-Ethernet according IEEE802.3at for type 1 and IEEE802.3af Yes
Standard for wireless communication
● IEEE 802.11a Yes
● IEEE 802.11b Yes
● IEEE 802.11e Yes
● IEEE 802.11g Yes
● IEEE 802.11h Yes
● IEEE 802.11i Yes
● IEEE 802.11n No
Wireless approval For operation in the USA, you can find more detailed information at: www.siemens.com/simatic-net/ik-info
Marine classification association
● American Bureau of Shipping Europe Ltd. (ABS) Yes
● Bureau Veritas (BV) Yes
● Det Norske Veritas (DNV) No
● Germanische Lloyd (GL) Yes
● Lloyds Register of Shipping (LRS) Yes
● Nippon Kaiji Kyokai (NK) Yes
● Polski Rejestr Statkow (PRS) Yes
Accessories
accessories 24 V DC screw terminal included in scope of delivery
Further Information / Internet Links
Internet-Link
● to website: TIA Selection Tool http://www.siemens.com/tia-selection-tool
● to the website: IWLAN http://www.siemens.com/iwlan
● to website: Industry Mall https://mall.industry.siemens.com
● to website: Information and Download Center http://www.siemens.com/automation/net/catalog
● to website: Image database http://automation.siemens.com/bilddb
● to website: CAx Download Manager http://www.siemens.com/cax
● to website: Industry Online Support http://support.automation.siemens.com
Security information
Security information Siemens provides products and solutions with industrial security functions that support the secure operation of plants, solutions, machines, equipment and/or networks. They are important components in a holistic industrial security concept. With this in mind, Siemens’ products and solutions undergo continuous development. Siemens recommends strongly that you regularly check for product updates. For the secure operation of Siemens products and solutions, it is necessary to take suitable preventive action (e.g. cell protection concept) and integrate each component into a holistic, state-of-the-art industrial security concept. Third-party products that may be in use should also be considered. For more information about industrial security, visit http://www.siemens.com/industrialsecurity. To stay informed about product updates as they occur, sign up for a product-specific newsletter. For more information, visit http://support.automation.siemens.com. (V3.4)
