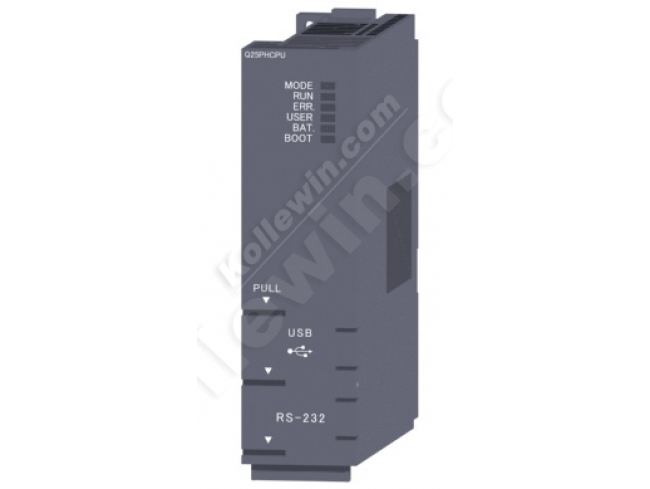

Q25PHCPU
Price:
$6,310.00
MODULAR PLC, PROGRAMMABLE LOGIC CONTROLLER CPU, PROCESS, 252K STEP.
Product Specifications
- Part Number: Q25PHCPU
- Type: CPU Module
- Manufacturer: Mitsubishi
- Series: Q Series
- Our part number: Q25PHCPU
- Description: Q Process CPU module, 252k step memory, 34ns per instruction, multi processor capability
- Height (mm): 98
- Width (mm): 27.4
- Depth (mm): 89.3
- Weight (kg): 0.2
Information about this range
- Q CPU modules available as single & multi processor
- RS232C interface for easy programming & monitoring
- Integrated flash ROMs for memory operation
- Processing the inputs & outputs with refresh mode
- Q02HCPU & upwards have a USB interface
- Floating point arithmetic according to IEEE 754
- Mathematical functions such as angle/exponential functions & logarithm
- Q Process CPUs offer:
- Simplified control & engineering
- Extensive loop control
- High speed loop control
- Hot-swap module replacement in run mode
- Works with CCLink IE, MELSECNET/H for multiplex remote I/O system
- Loop control & sequence control with 1 CPU
- Use with isolated analogue modules, ideal for process control
- Smoothed analogue input value
What is System Q?
- System Q, a modular PLC system
- Communication hub connecting to fieldbus or data networks
- Multi CPU solutions on a single backplane
- Solutions can include PLC, Motion, Robots, NC, PC & Process CPUs
- Integration with HMI, Soft HMI through to SCADA & OPC
- MES & web server modules
- Redundancy options for both PLC hardware & networks
- Pulse catch & interrupt modules
- Communication modules
- Network modules
- Digital input/output modules
- Analogue input/output modules
- Positioning modules
